Vault & Oil Separator

Vaults, oil separators and coalescing media oil separators in a range of standard sizes. Chambers are cast in steel forms with high-strength self-compacting concrete, for a watertight chamber with dense walls.

Also Used For

  • Storm sewer replacements
  • Detention tanks
  • Packaged water systems
  • Valve chambers for sanitary forcemains

Options

  • Manhole-style castings or hatches
  • Coalescing media at install, or added later

We provide engineering assistance for structural design and detailed shop drawings.

Request A Quote Drawings (11 Sheets)

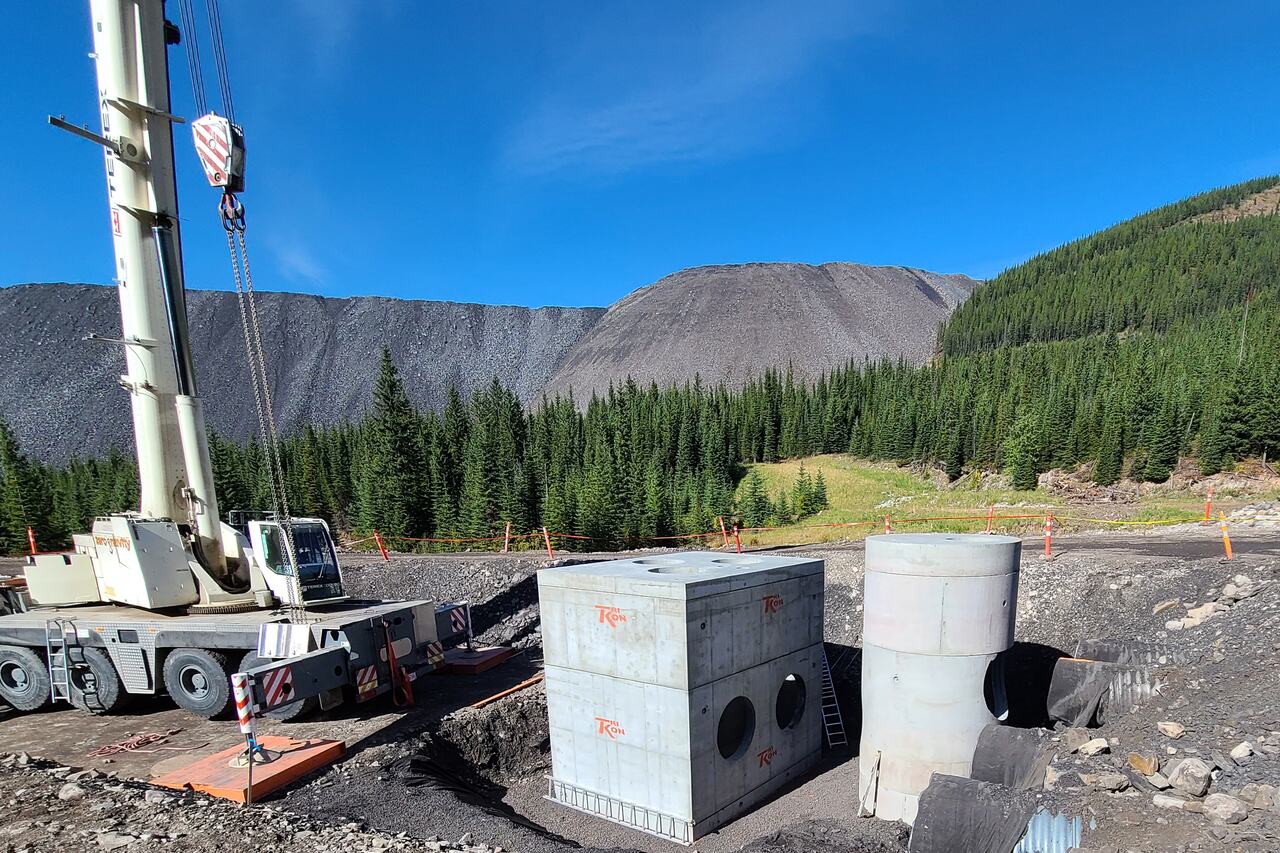

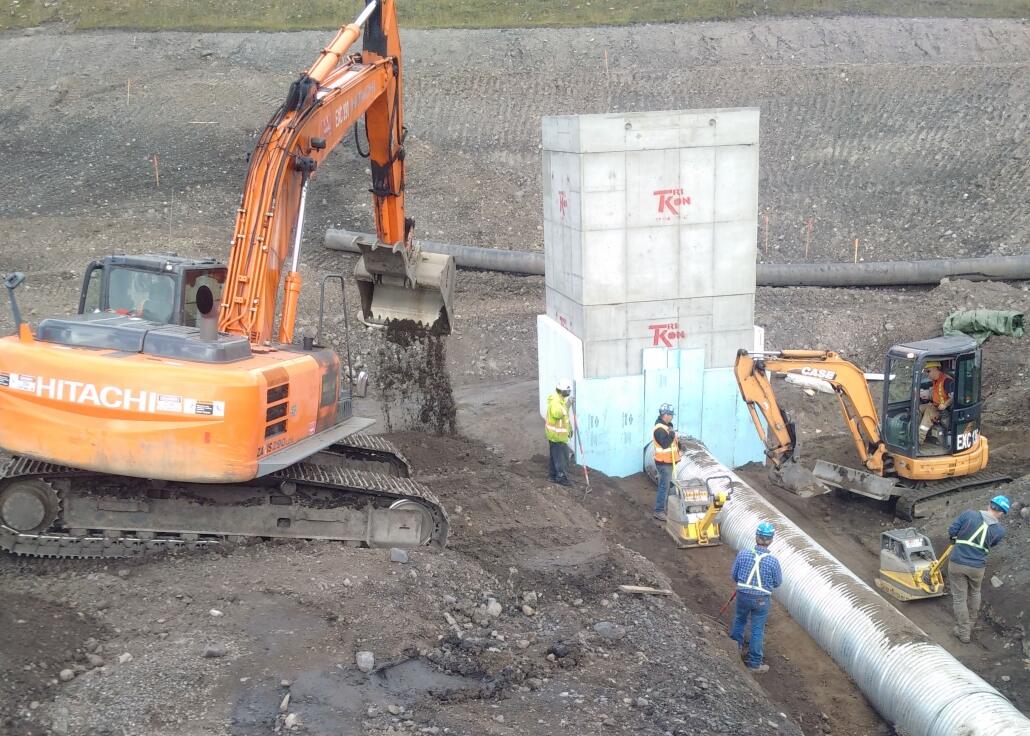

Vault installation

Photos

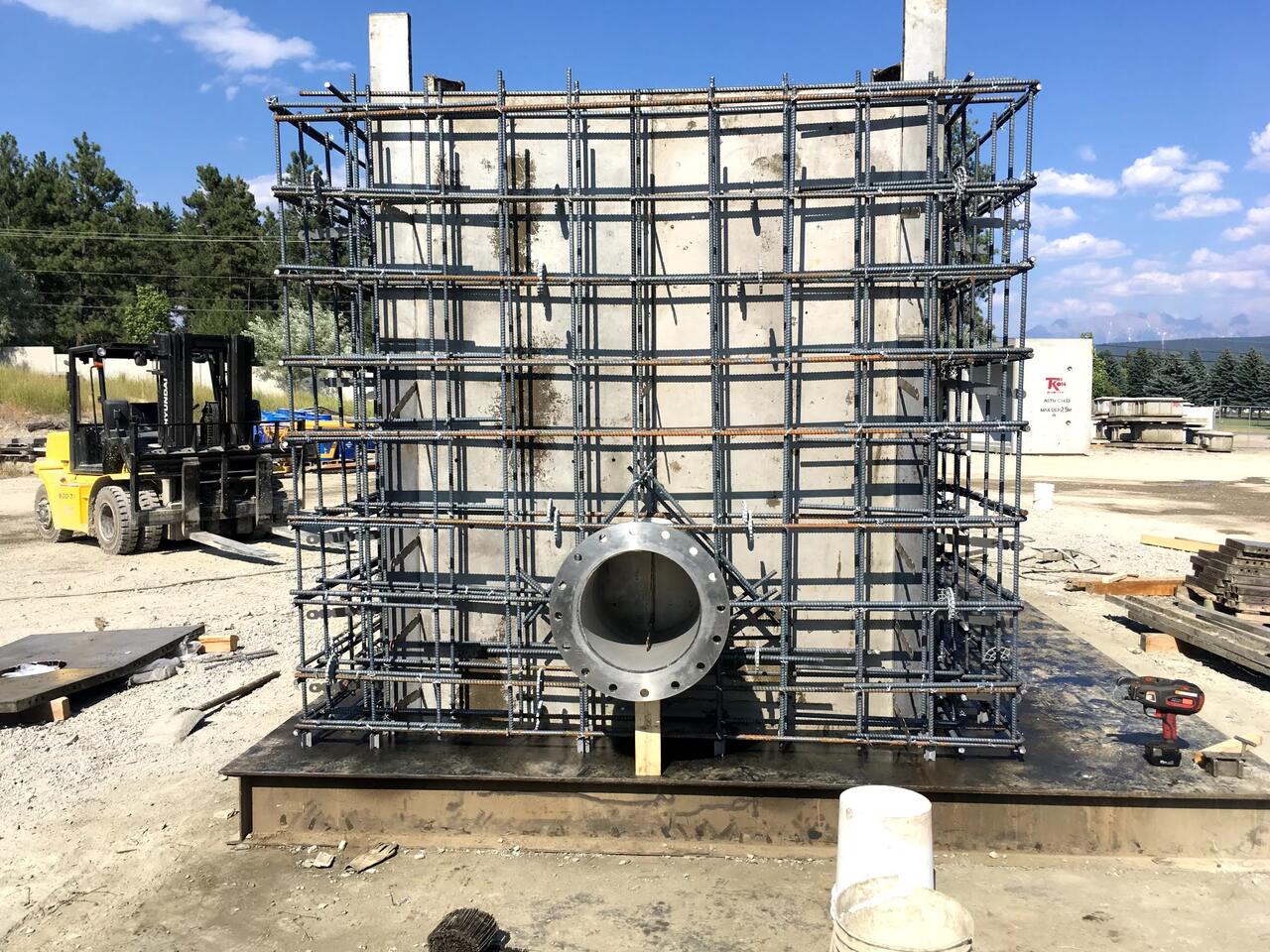

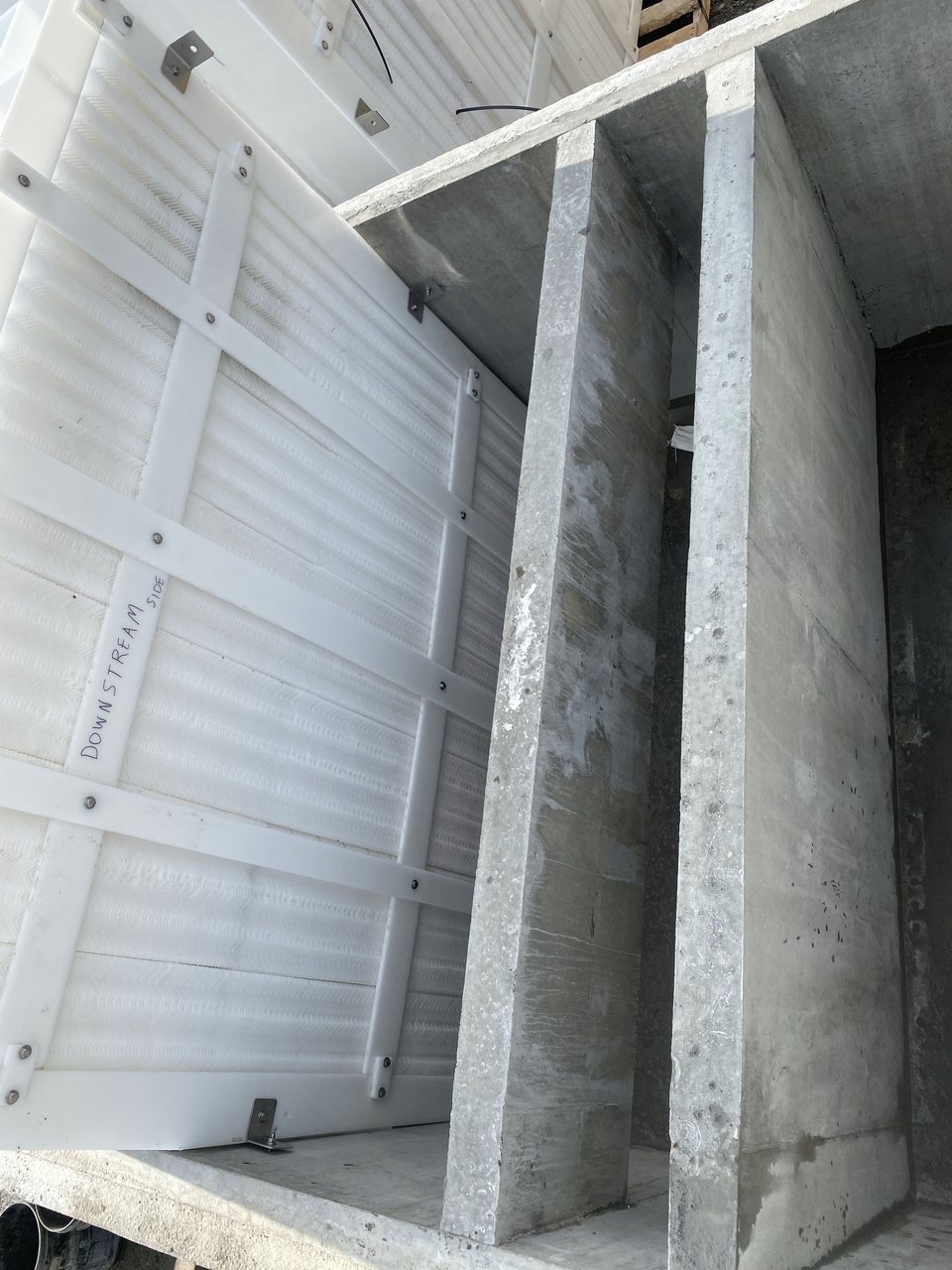

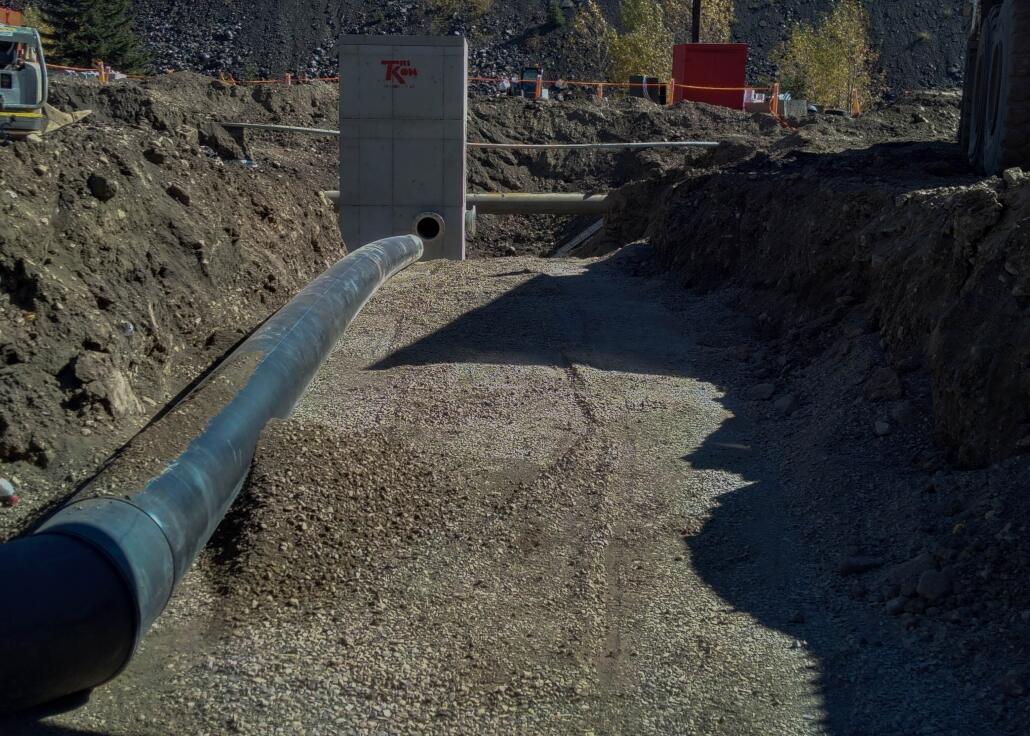

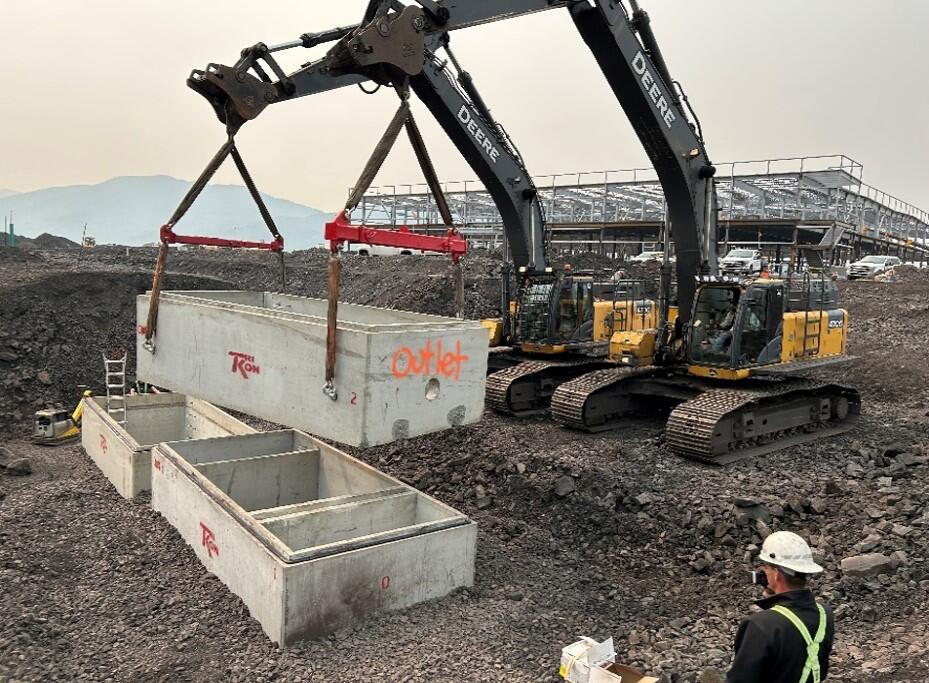

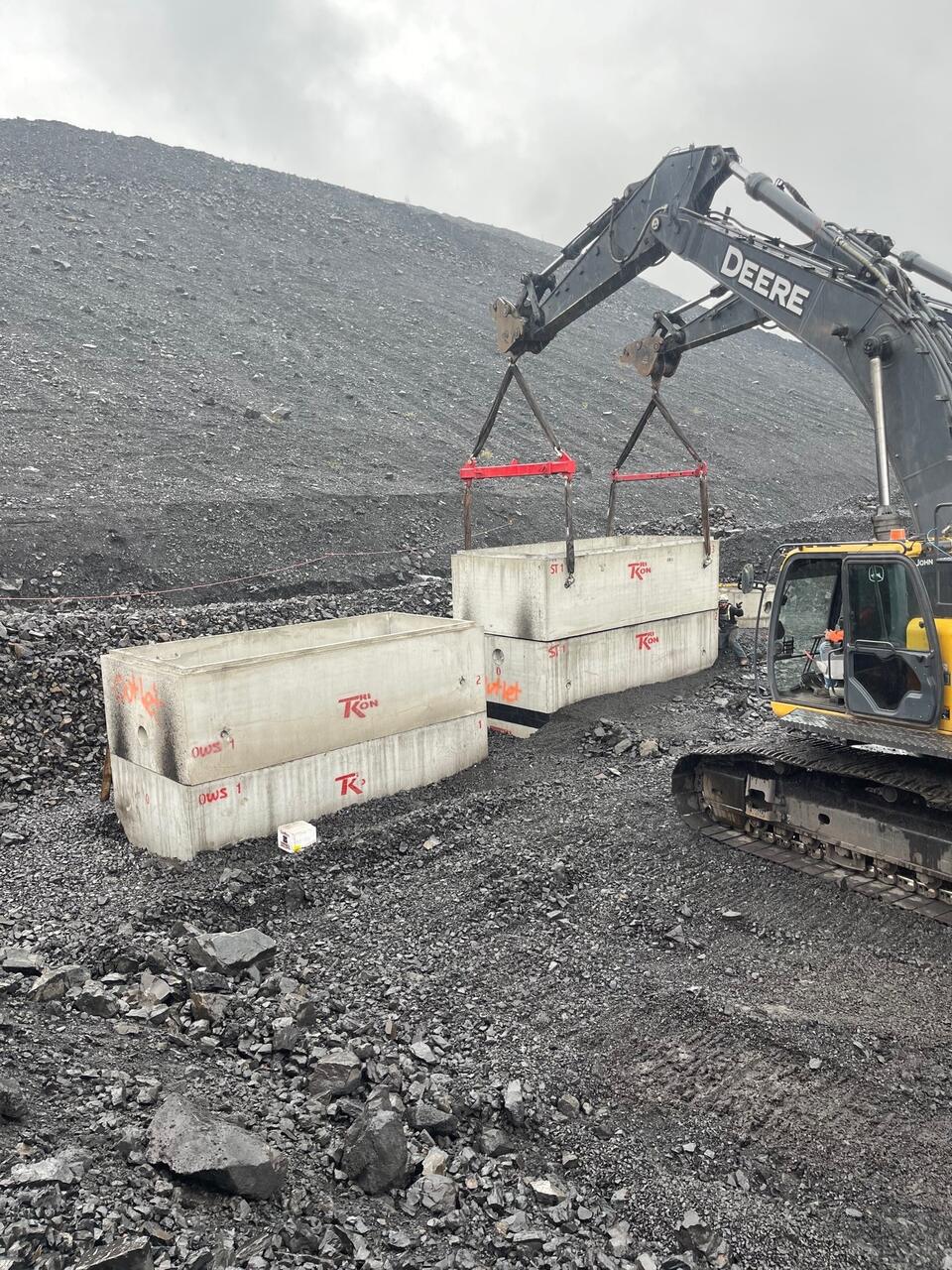

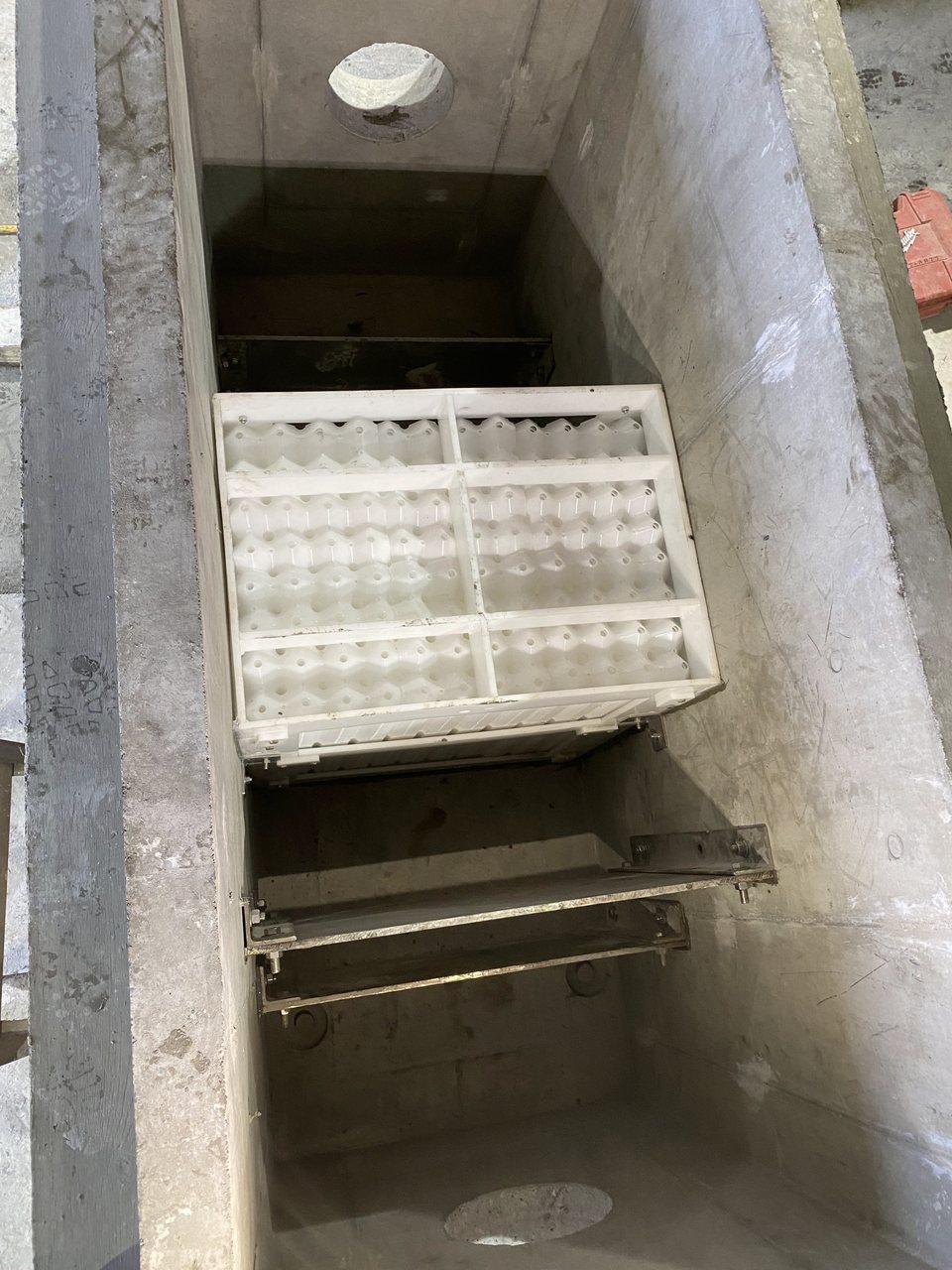

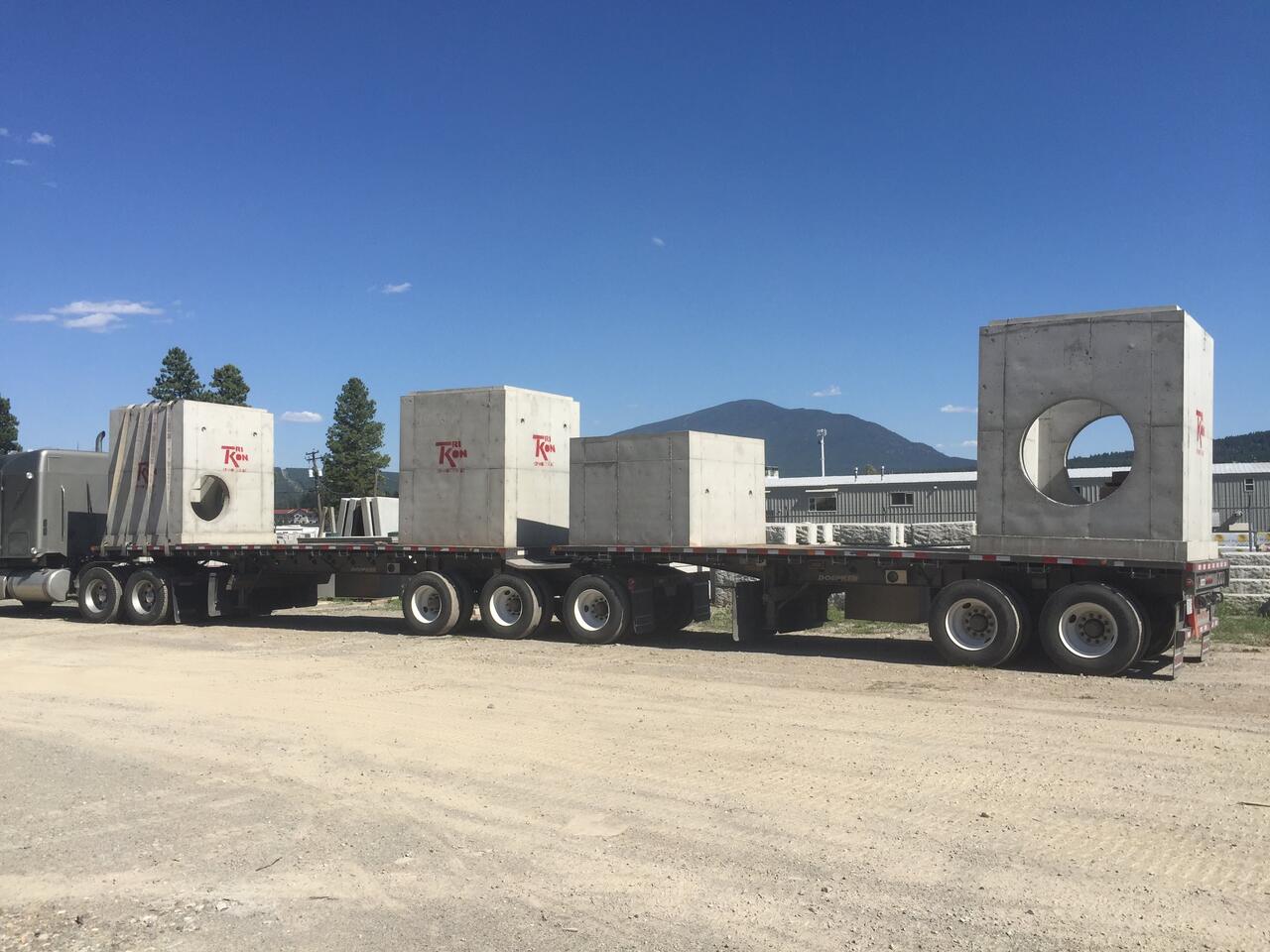

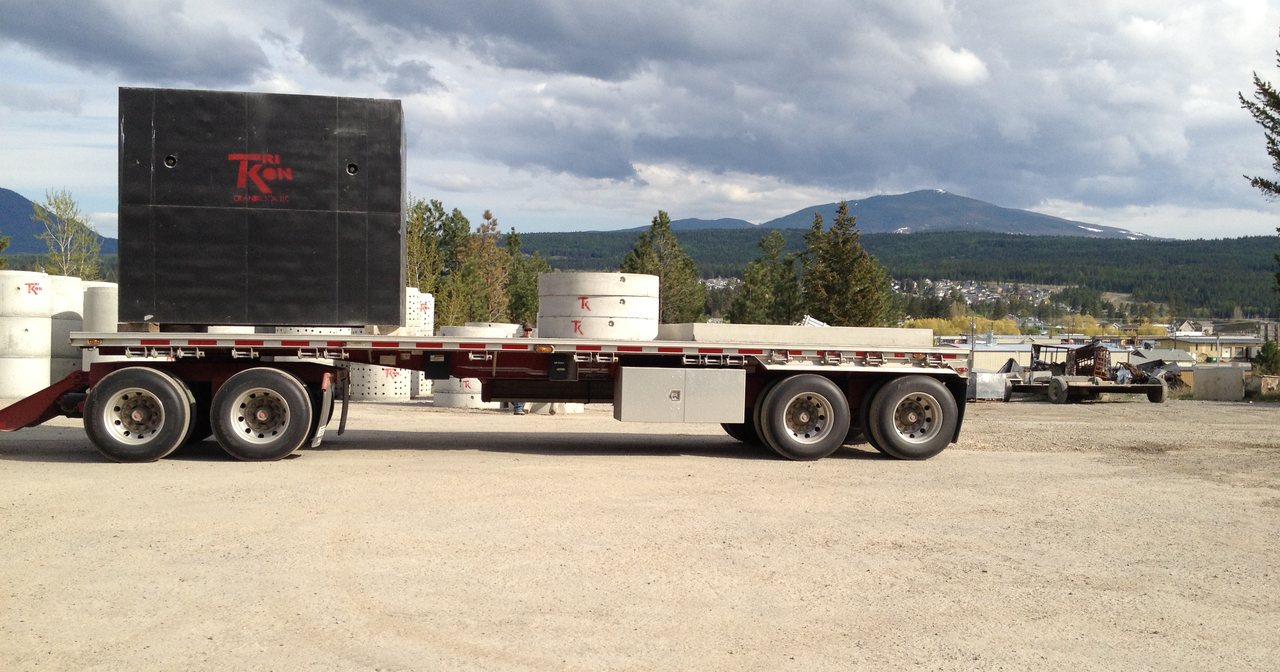

Vault installationVault installationVault and manhole sectionsVault sectionsVault installationVaultCustom vault rebar cageOil separatorOil separator

Drawings

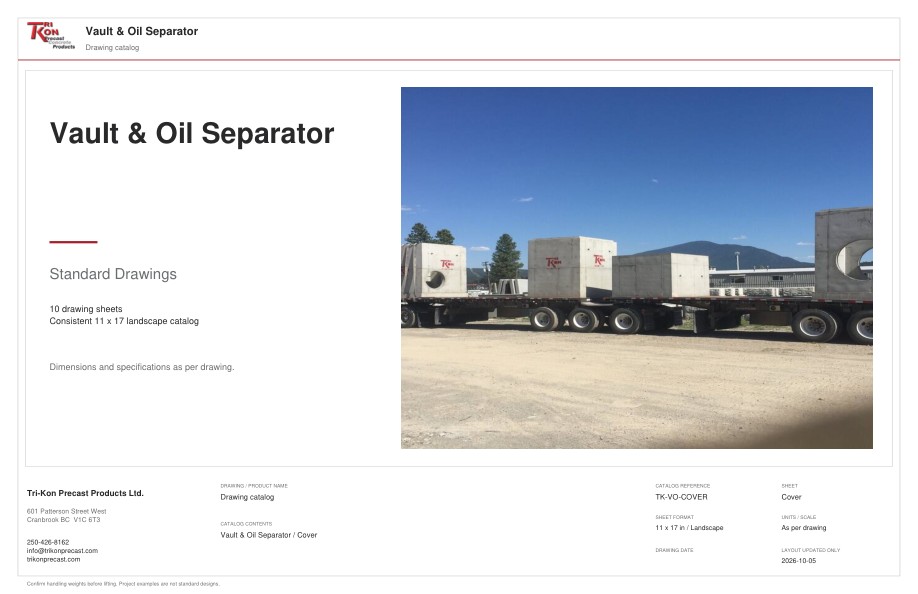

Cover sheet of the Vault & Oil Separator standard drawings

Standard Drawings

10 sheets, one PDF.

Open PDF
Cover sheet of the Vault & Oil Separator project examples

Project Examples

1 sheet, one PDF. Drawn for specific jobs, shown as examples of what we build.

Open PDF
