Products / Headwall

Headwall

Headwalls for a wide range of pipe diameters, with grates and handrails as options. Custom headwalls are built on request.

Pipe Diameter
203 mm (8 in) to 1830 mm (72 in)

Options

  • Inlet grate
  • Outlet grate
  • Handrails

Custom

  • Double headwalls
  • Box culvert headwalls
Request A Quote Drawings (16 Sheets)

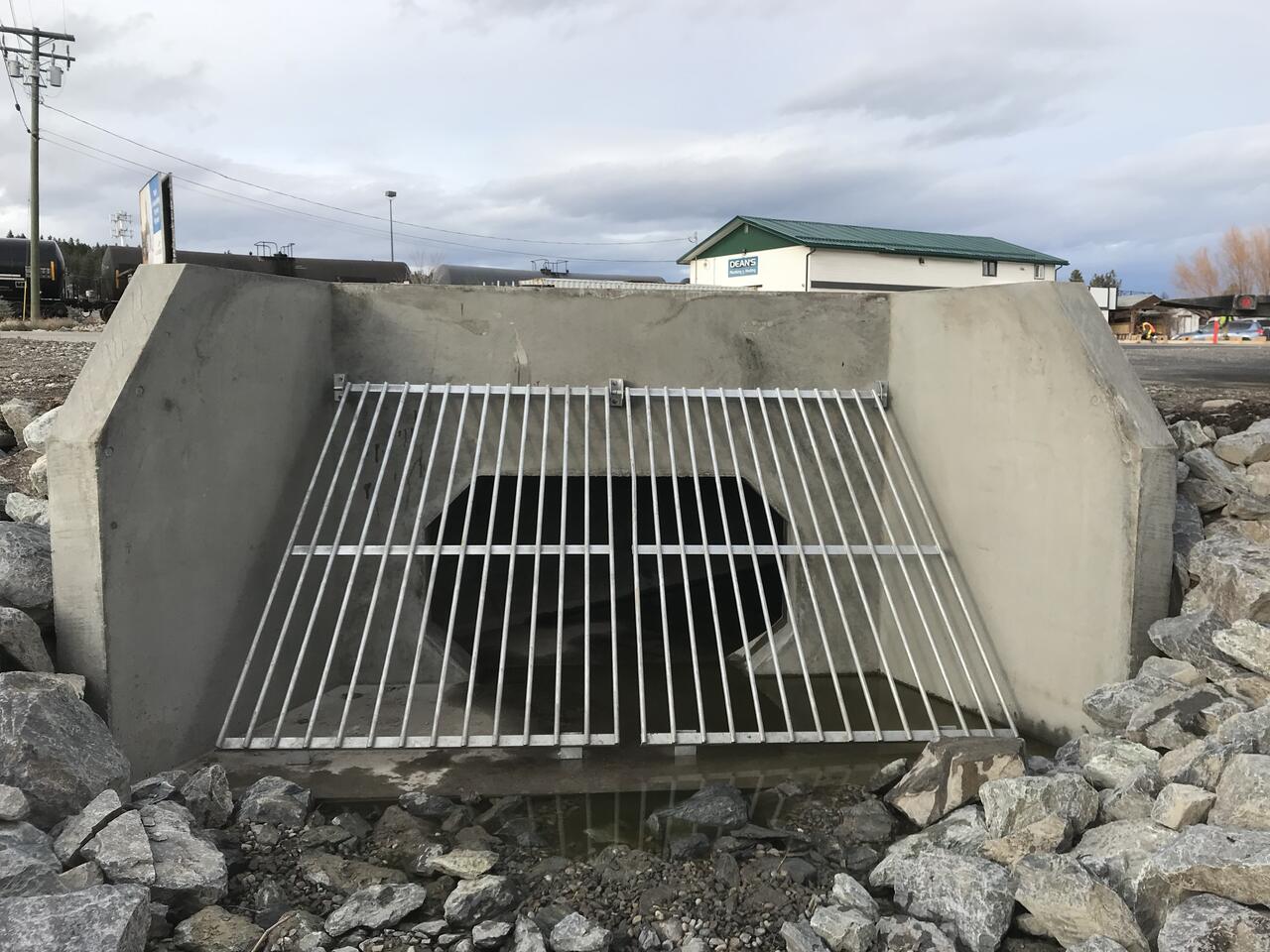

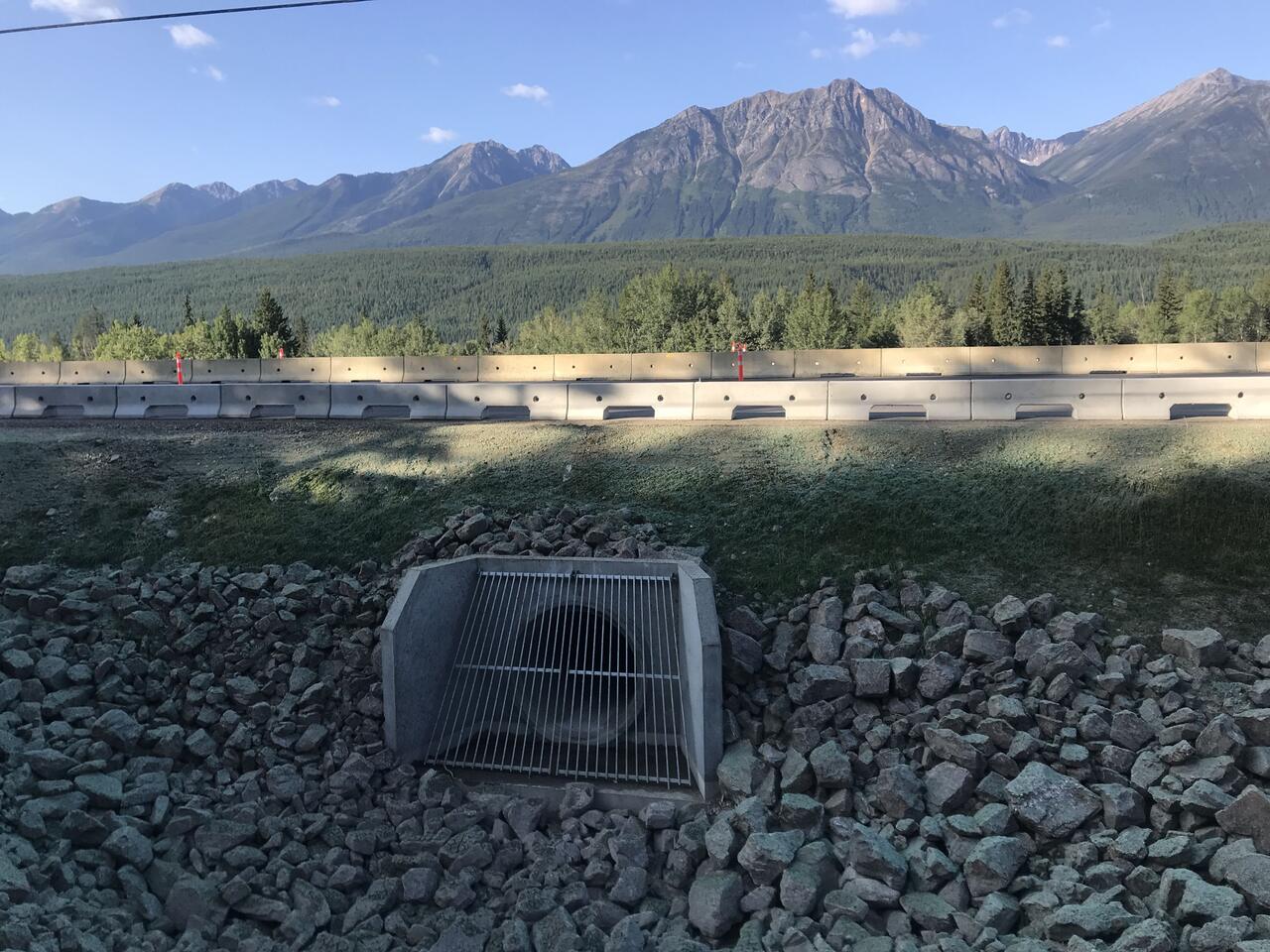

Headwall with grate

Photos

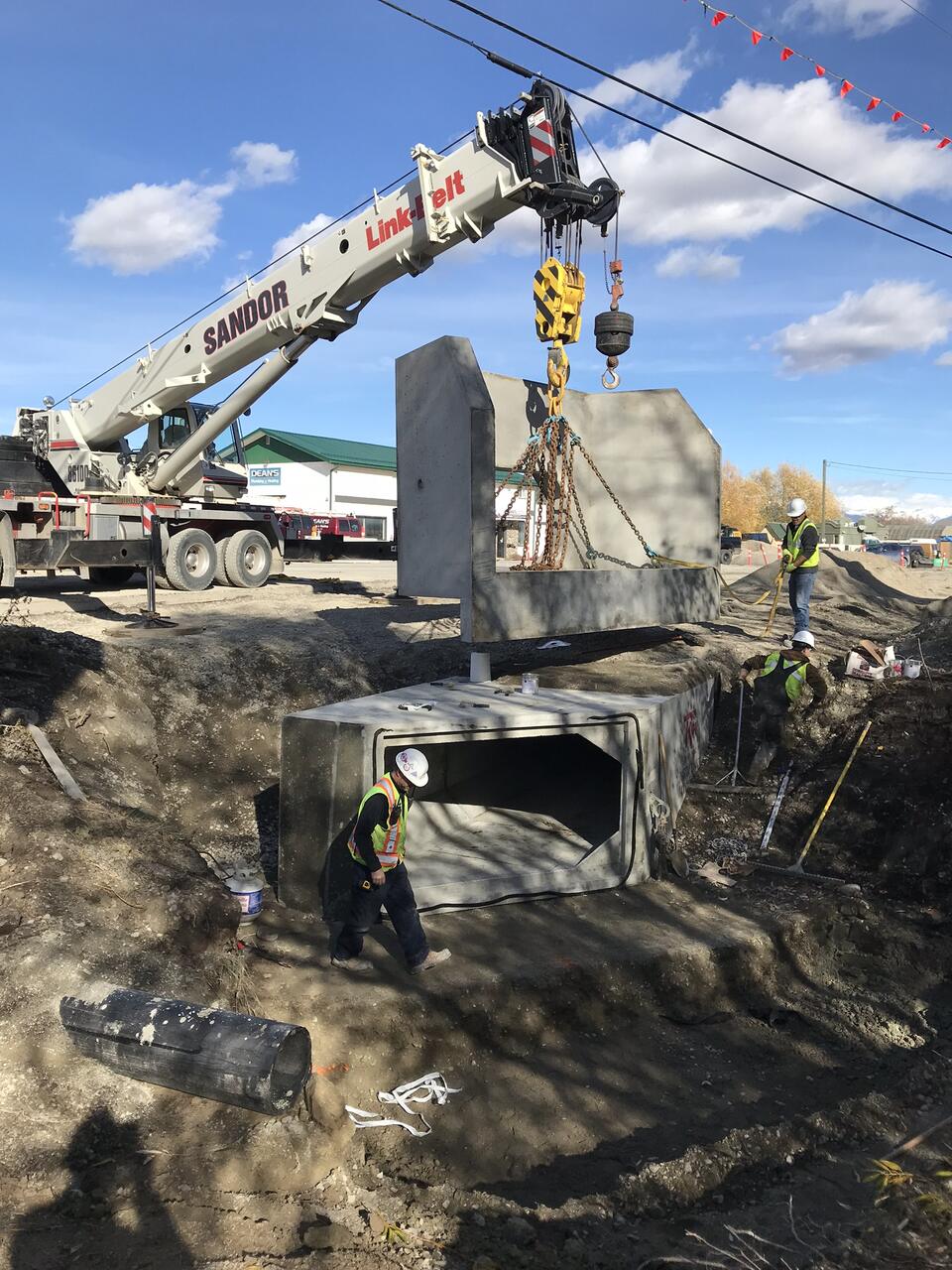

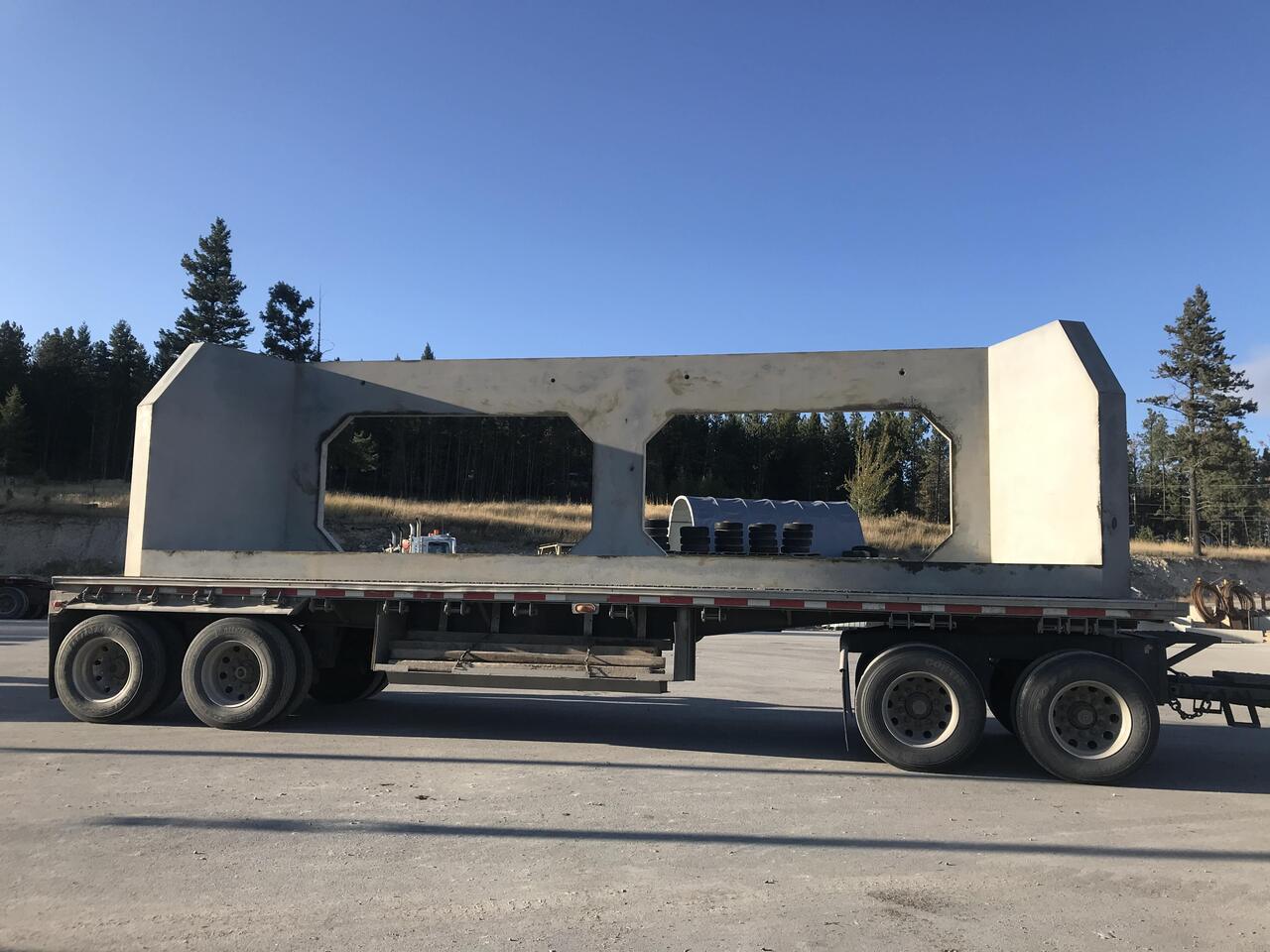

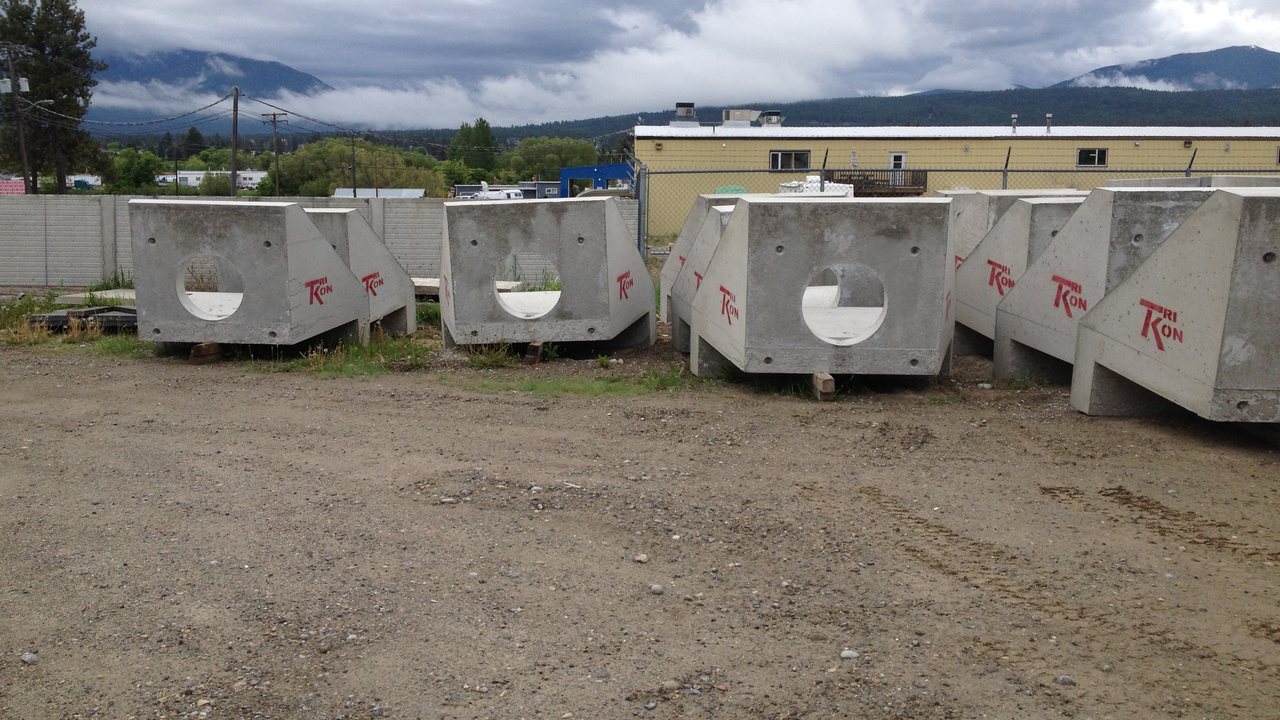

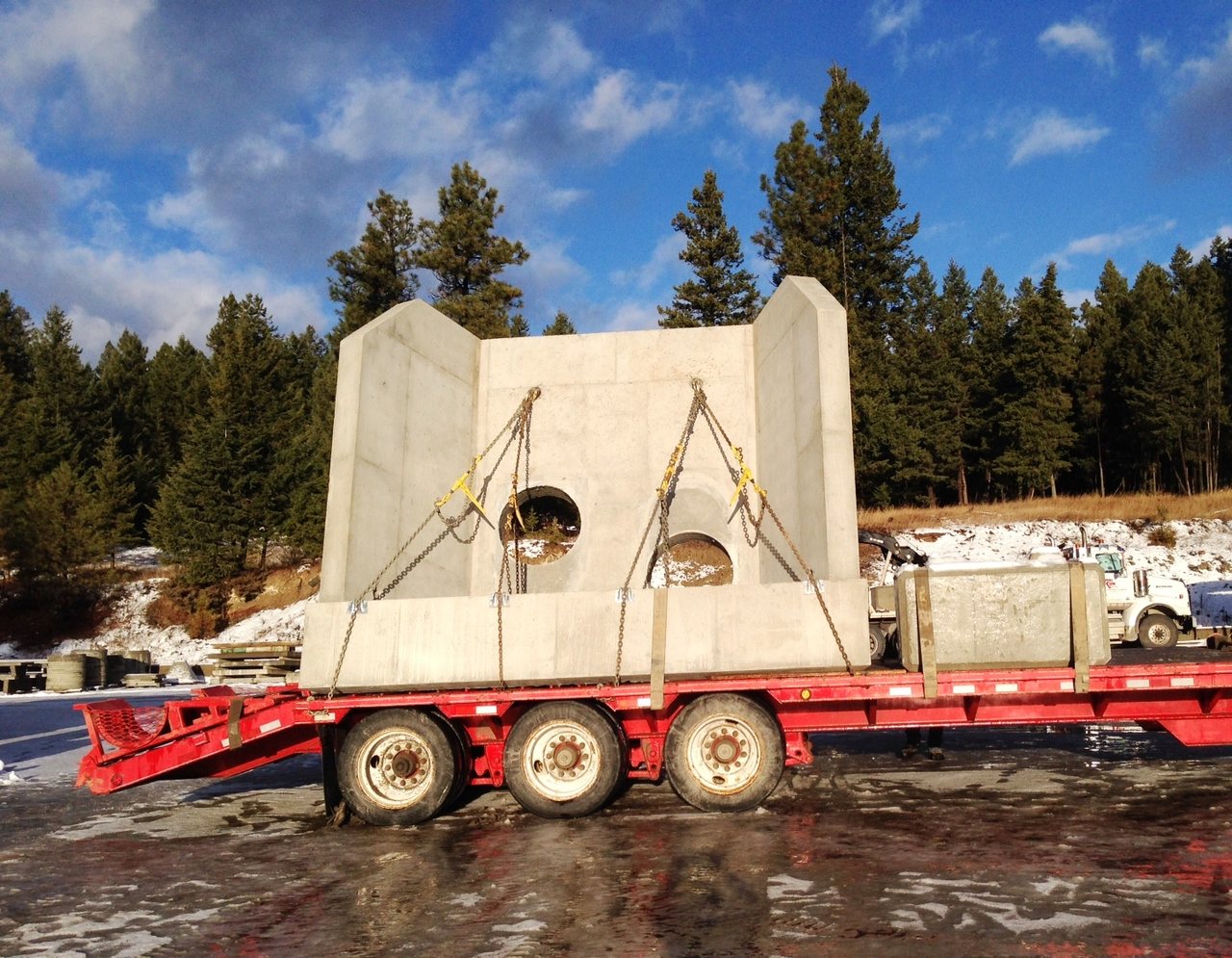

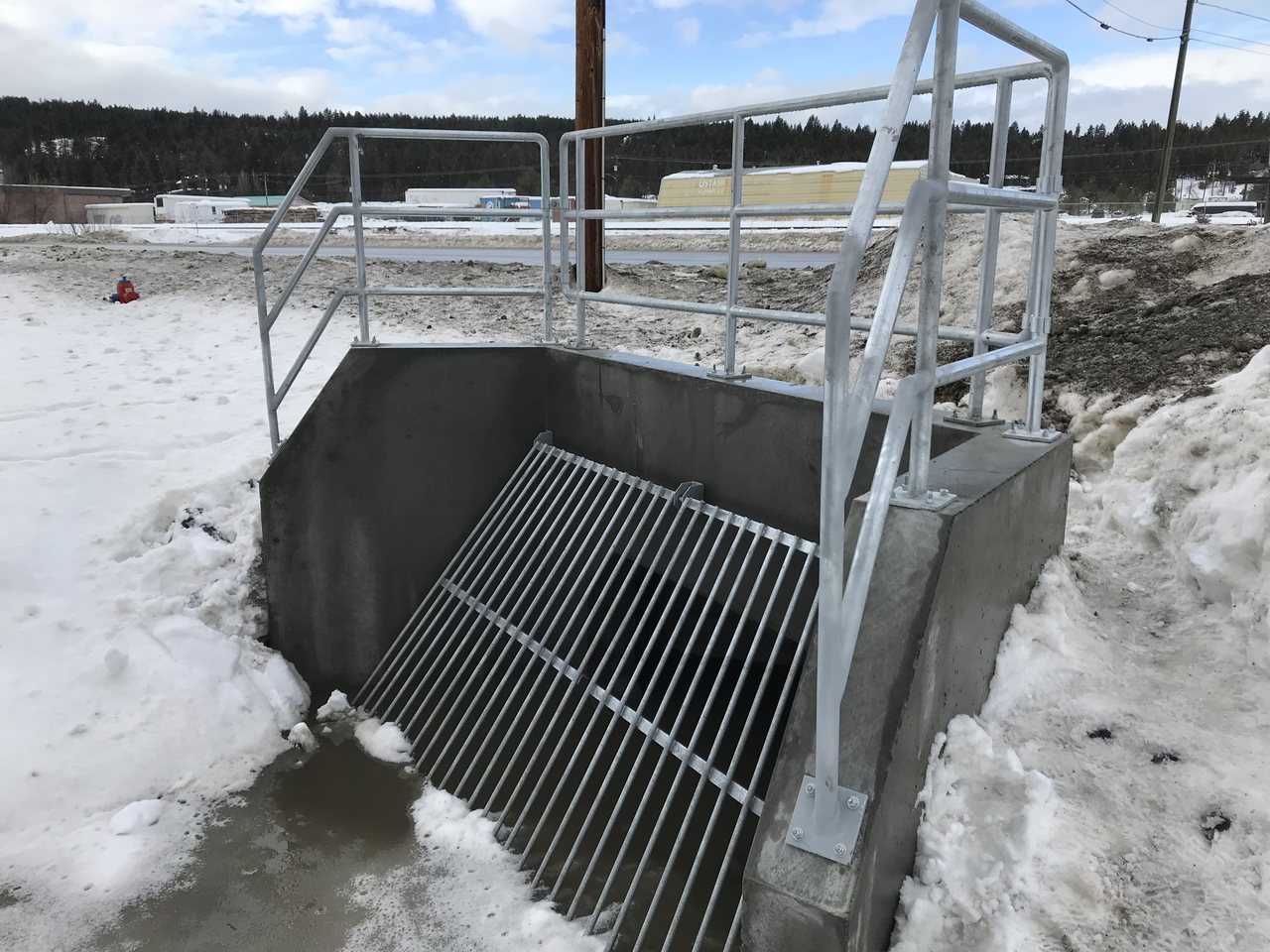

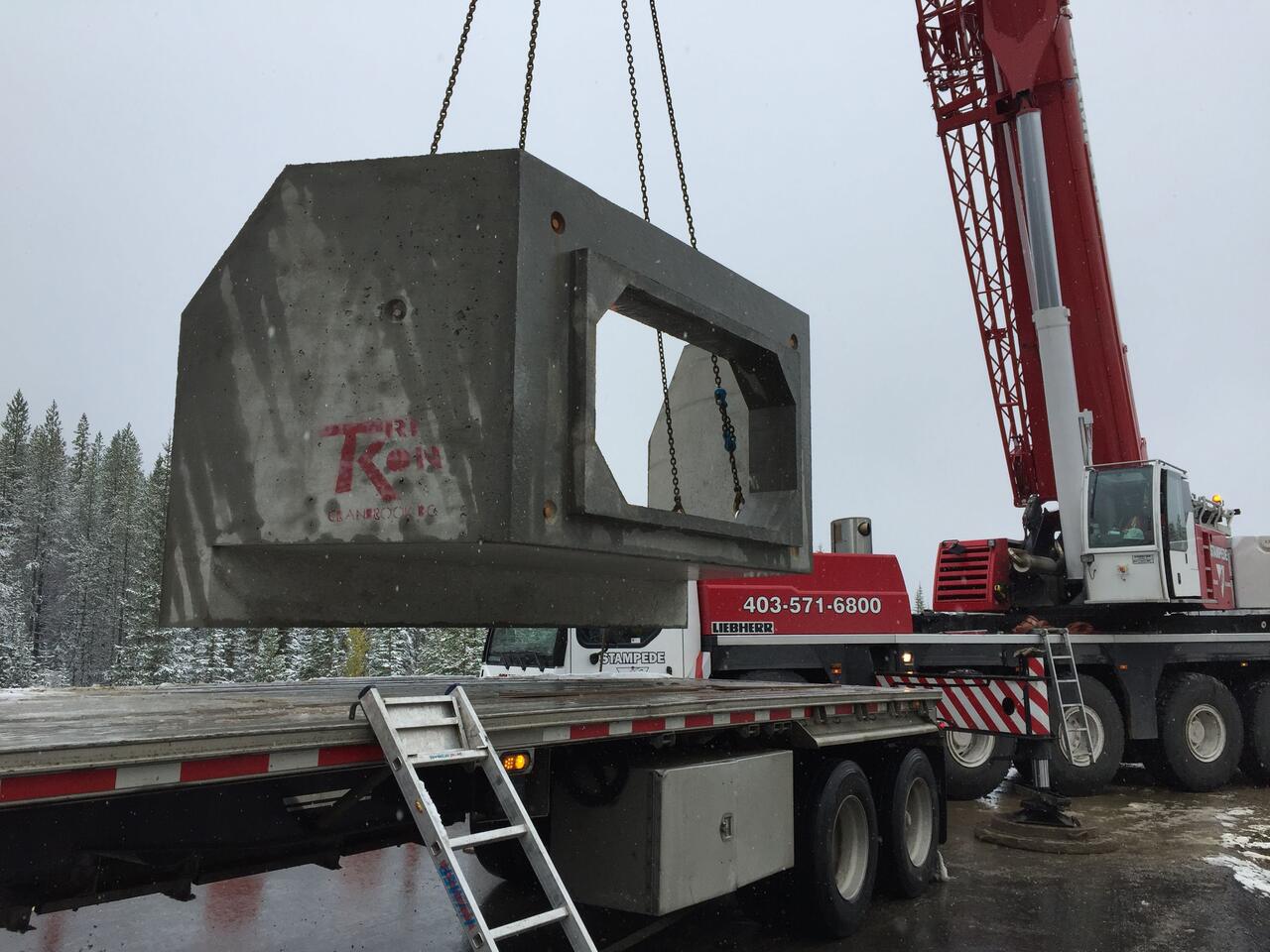

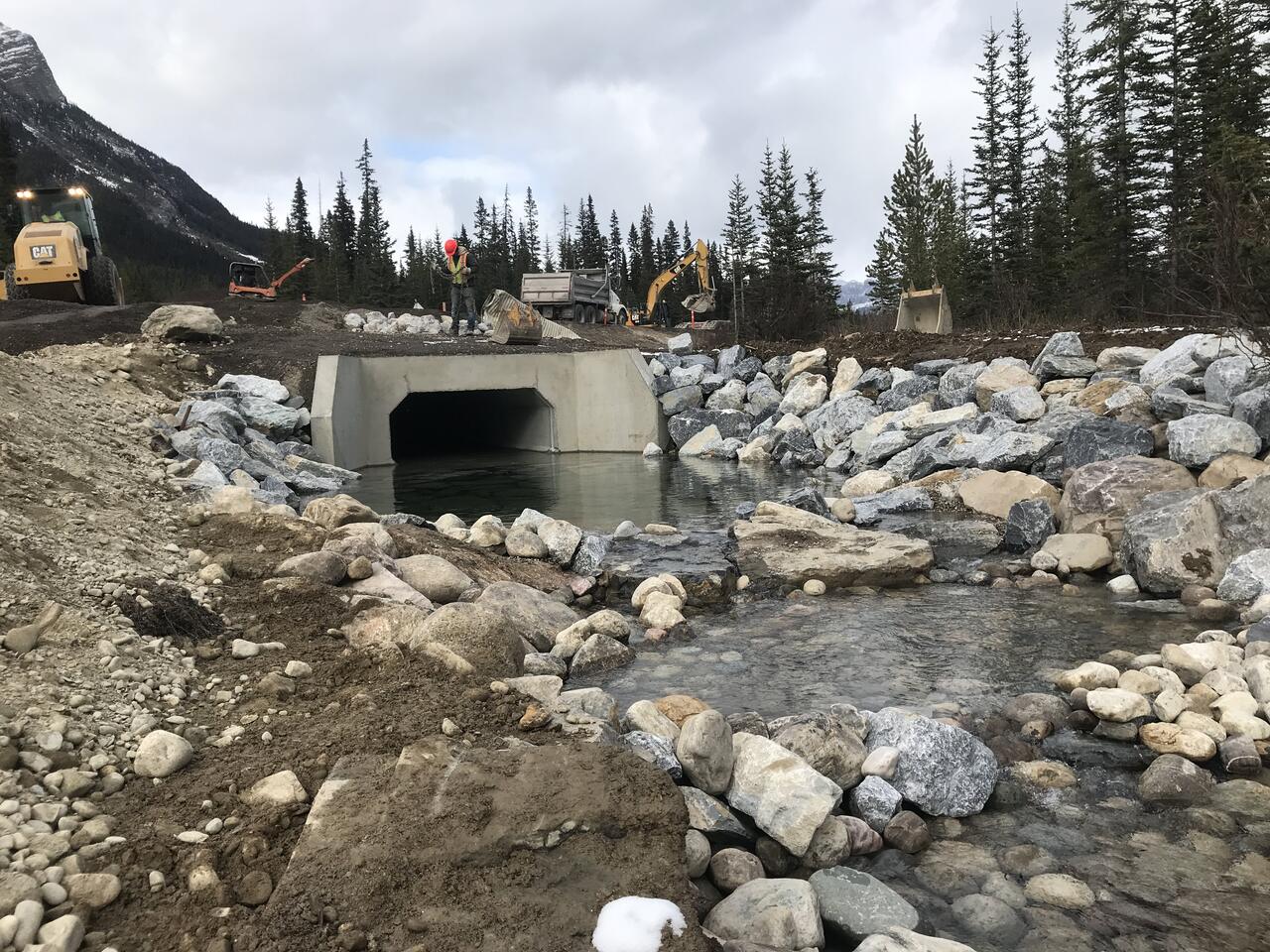

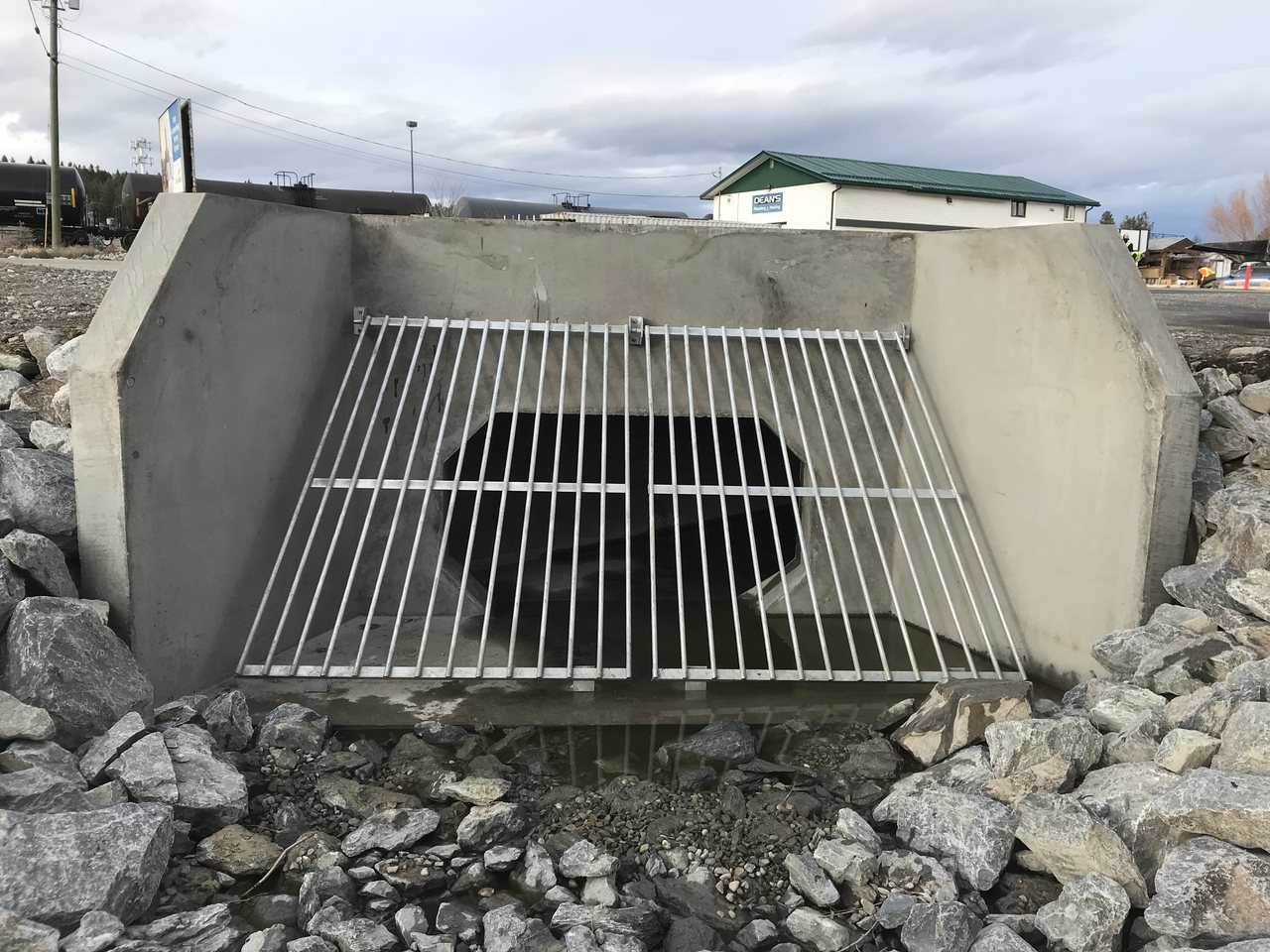

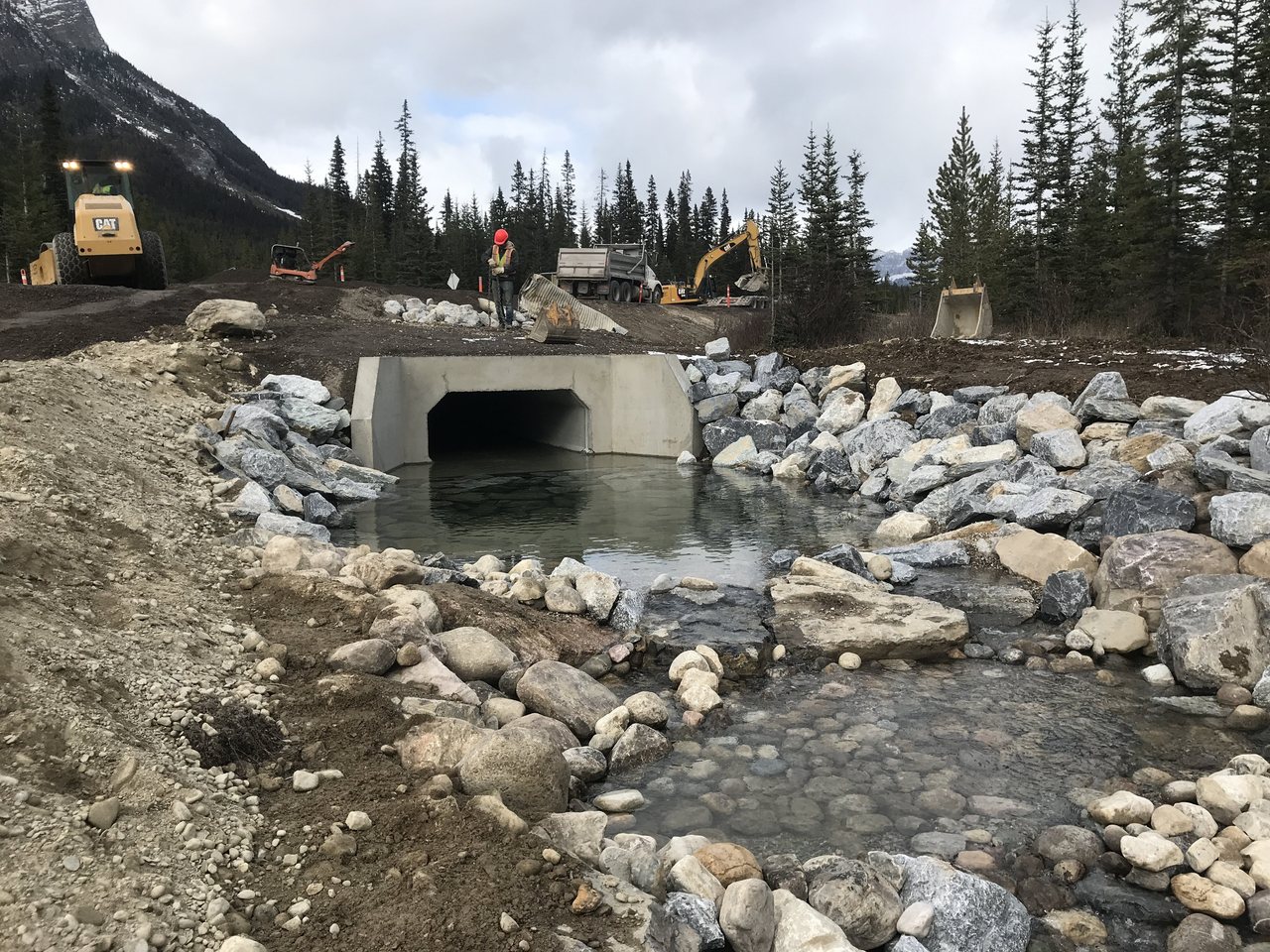

Box culvert headwallHeadwall with handrailsHeadwallHeadwall with grateDouble headwallTwin headwallHeadwallsBox culvert headwallHeadwall with handrailHeadwall installationHeadwall installation

Drawings

Cover sheet of the Headwall standard drawings

Standard Drawings

12 sheets, one PDF.

Open PDF
Cover sheet of the Headwall project examples

Project Examples

4 sheets, one PDF. Drawn for specific jobs, shown as examples of what we build.

Open PDF
